Entrance Bi Fold Gates

Commercial Factory Entrance Bi Fold Gates – Hallam

Dilemma:  Restricted Space

With driveway concrete edging – sliding gates were not an option.  With drive-through areas, swing gates were not an option.

Solution & Outcome:

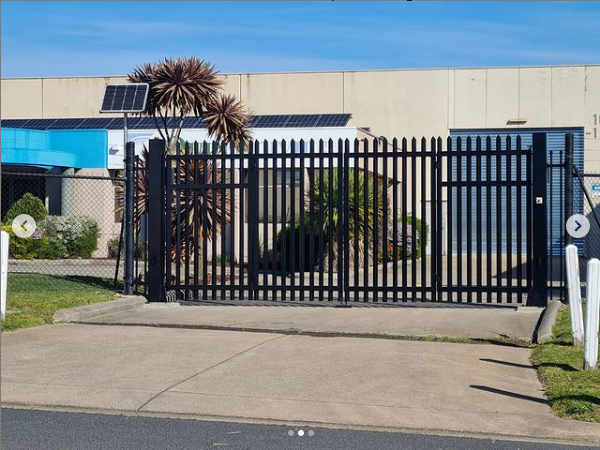

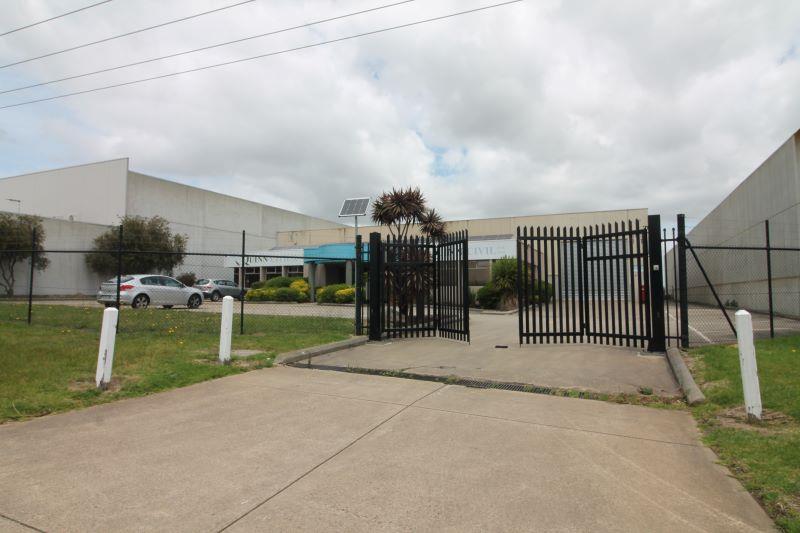

Trackless bi-fold security gates with solar power. Bi folds fit neatly between the concrete edging, whilst taking up minimal space allowing cars to drive to both dispatch and reception areas.

Solar powered.  Photocells installed for protection.  Ground lock for gates to lock into when closed.  Ground E-loop vehicle detector to open gates automatically when vehicle drives over to exit, with auto-close set up. Key switch to hold open gates during business hours. GSM phone system to ring and open/close gates after hours.  For protection, flashing light and sound when gates are moving.

Automation:

·         Operators: TMGC CS-100 Commercial Gate Motors

·         Control Board: Advanced

·         Origin: Australia

·         Power: Solar

Accessories:

·         PE Photocells

·         Ground Lock Plate

·         Flashing Light and Sound

·         Weatherproof Key Switch – hold gates open in business hours

·         E-Loop Vehicle Detector – exit

·         Auto-Close Setup

·         4G-GSM Phone Access System

·         Solar Panel & 2 x 25 AMP Hr Batteries

Design:

·         Commercial Heavy-Duty Angle with V-Top

·         Powder Coat:  Night Sky Black
